Plunger Rods
Product Categories:
Sapphire
Sapphire Rod
Plunger Rods
Typical application:
Liquid chromatograph
Spectrometer and
Biochemical detector
Technical features:
Cylindrical polishing Rz0.10
Diameter tolerance up to 0.005mm
The roundness is 0.001mm
Component concentricity within
0.05mm
Red absorption detection of zirconia
ceramics

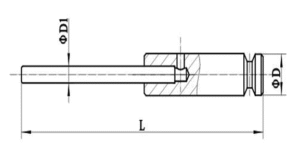

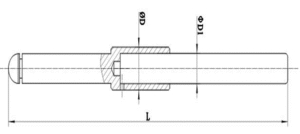

| ITEM | D | H | Material |
| Plunger rod | φ0.40－40.00 | 1.00－200.00 | Ruby, Zirconia |
| Metal structure | Customization | Customization | SUS304, SUS316 |
Component Control
Test the pulling force of each product.The concentricity is within
0.05mm
