Exploring Artificial Sapphire Windows: Unlocking a New Era in Optics
In today's rapidly evolving technological landscape, optical window materials play a crucial role across numerous industries. From consumer electronics to military technology, and from medical devices to aerospace applications, high-performance window materials are essential to ensure the proper functioning of equipment. Among these materials, artificial sapphire windows stand out due to their exceptional properties, becoming the preferred choice for high-end applications. For more authoritative information, you can refer to: Wikipedia, NASA（PDF）.
I. Definition and Characteristics of Artificial Sapphire Windows

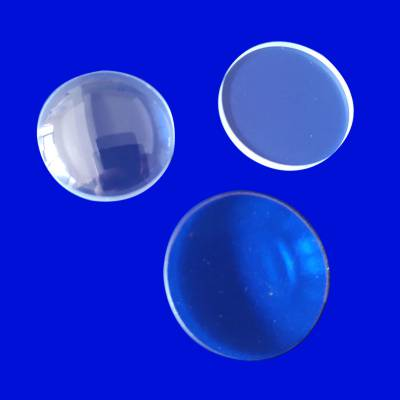

(A) What are Artificial Sapphire Windows
Artificial sapphire windows are transparent window components made from synthetic sapphire crystals (composed of α - aluminum oxide, Al₂O₃). Unlike natural sapphire jewelry that we commonly encounter in daily life, these are high-performance optical materials produced through advanced crystal growth techniques.

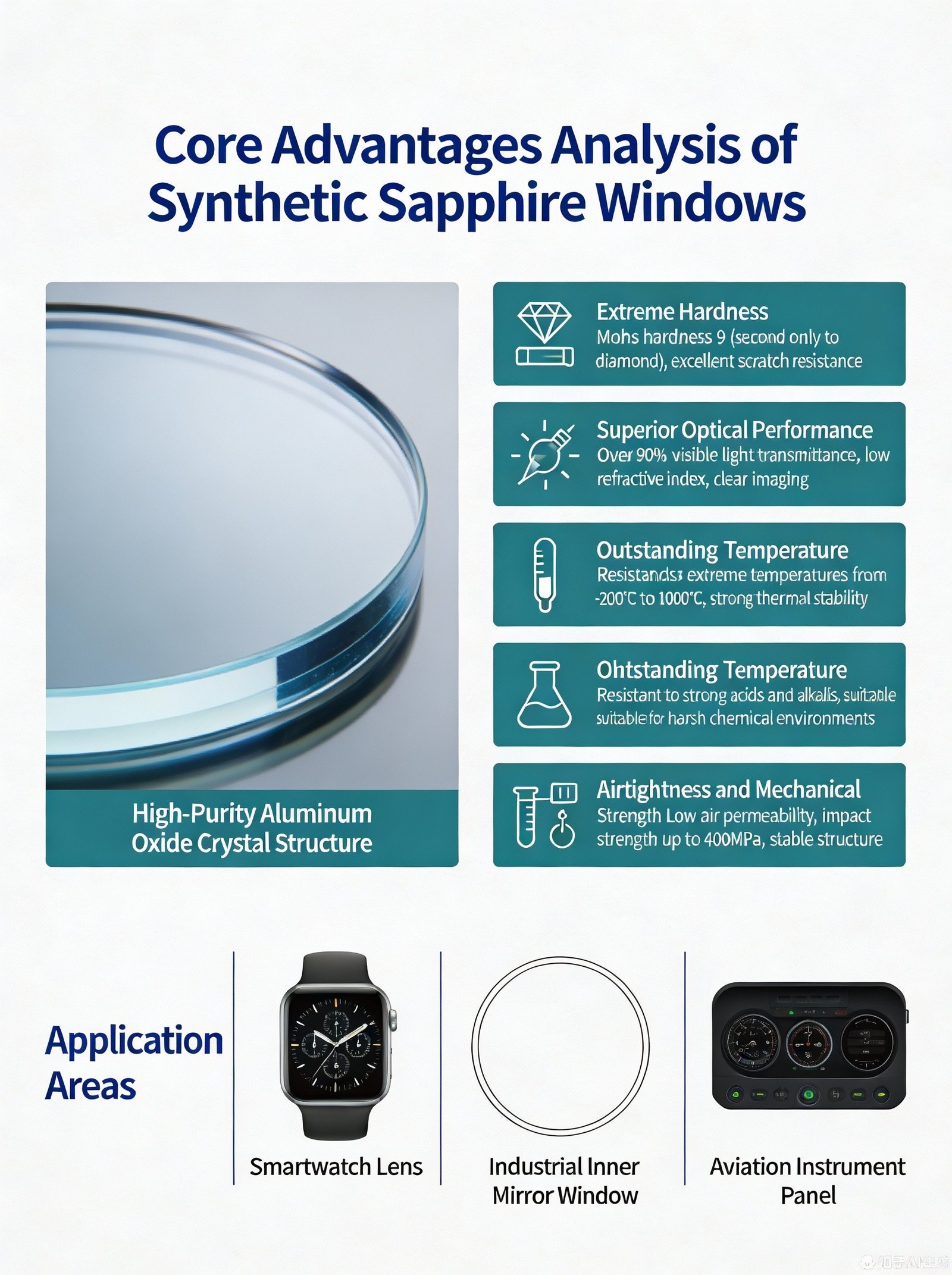

(B) Outstanding Performance Advantages
| Performance | Detailed Description | Application Scenarios |
|---|---|---|
| Extremely High Hardness | With a Mohs hardness of up to 9, second only to diamond, it is highly scratch-resistant. Common sand, gravel, and metals cannot leave scratches on its surface. | Industrial production sites, outdoor equipment, and other environments prone to friction and collision. |
| Excellent Optical Performance | It has a high light transmittance over a wide wavelength range, from ultraviolet (UV) to infrared (IR), with a maximum transmittance of 85% - 90%, far exceeding that of ordinary glass. | Ultraviolet spectrometers, infrared thermal imaging devices, high-power laser systems, etc. |
| Exceptional Temperature Resistance | It has a melting point of 2050°C and can maintain stability for long periods at temperatures above 1600°C without deformation or melting. It also maintains stable performance in low-temperature environments. | High-temperature equipment such as furnaces and aircraft engines. |
| Chemical Corrosion Resistance | It has strong inertness towards acids, alkalis, and most chemical media, and does not react with most chemical substances in the environment. | Chemical manufacturing, petroleum exploration, and other environments with severe chemical corrosion. |
| Good Airtightness and Mechanical Strength | It can withstand mechanical stresses in vacuum and high-pressure working conditions. | Key areas requiring sealing and protection, such as semiconductor equipment and vacuum coating machines. |
(C) Limitations
| Limitation | Detailed Description | Impact |
|---|---|---|
| High Brittleness | When subjected to point impacts or bending stresses, especially at the edges or thin-walled areas, it is prone to cracking and rapid propagation, leading to overall rupture. | Special protective designs are required in environments where impacts may occur. |
| Difficult Processing | Due to its high hardness, cutting, grinding, and polishing must be done using diamond tools, resulting in time-consuming processing, high energy consumption, severe tool wear, and high costs. | It limits the large-scale application and popularization of artificial sapphire windows. |
| High Density | In lightweight applications, the weight factor may become a burden. | In fields where strict weight requirements are imposed on equipment, such as aerospace and automotive industries, it may affect the overall performance and efficiency of the equipment. |
| Limited Spectral Transmission Range | The optical transmittance of sapphire drops sharply in the mid-to-far infrared wavelengths above 5μm, which may limit its application in certain thermal imaging or infrared detection systems. | In these fields, other window materials with a wider spectral transmission range may need to be selected. |
II. Application Fields of Artificial Sapphire Windows

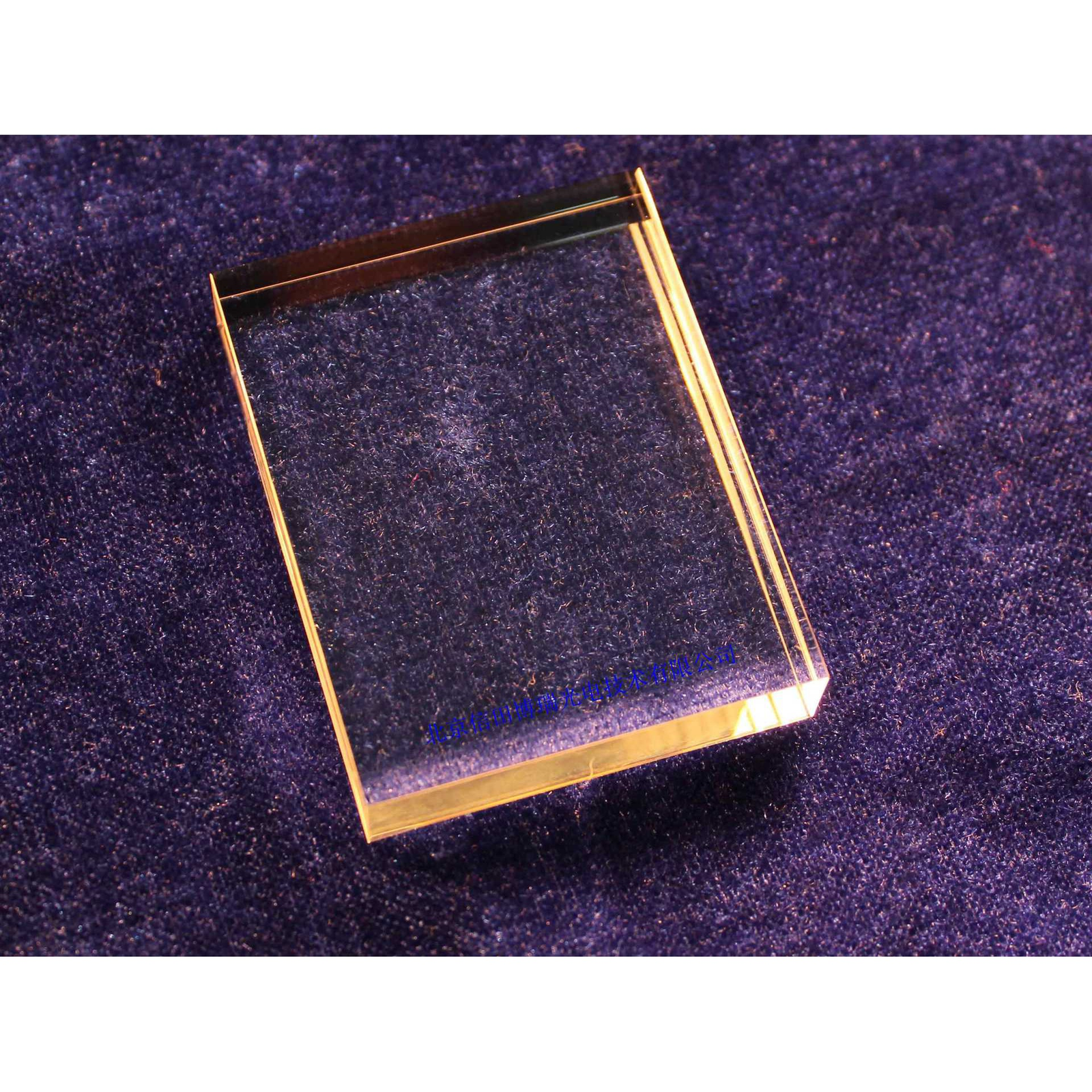

(A) Consumer Electronics
| Application Scenario | Role | Advantage Manifestation |
|---|---|---|
| Smartphone Camera Cover | Protects the precision lens from scratches and abrasions, ensuring clear and sharp imaging at all times. | Its high hardness and scratch resistance extend the service life of the camera lens. |
| Home Button / Fingerprint Recognition Sensor Window | Ensures the accuracy and reliability of fingerprint recognition while preventing scratches and abrasions on the window. | It combines high light transmittance and wear resistance. |
| Smartwatch Watch Mirror | Protects the watch mirror from damage and ensures a clear and visible display screen. | Its high hardness and scratch resistance protect the watch mirror from damage. |

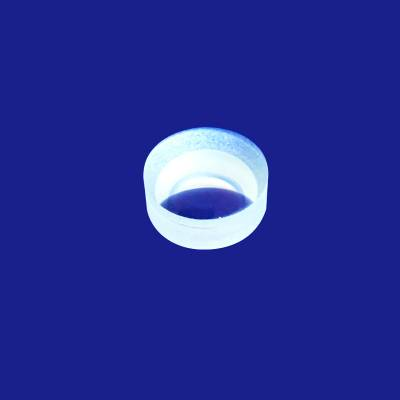

(B) Industrial and Scientific Fields
| Application Scenario | Role | Advantage Manifestation |
|---|---|---|
| Barcode Scanner Window | Ensures the long-term use of the scanner window and reduces maintenance and replacement costs. | Its high hardness and friction resistance guarantee the long-term use of the scanner window. |
| Vacuum Observation Window | Maintains high vacuum sealing and allows optical detection signals to pass through, ensuring a high degree of vacuum inside the equipment. | Its good airtightness ensures a high degree of vacuum inside the equipment. |
| High-Temperature Observation Window | Monitors the internal working conditions in high-temperature environments in real-time and provides a guarantee for the safe operation of the equipment. | Its exceptional temperature resistance ensures normal operation in high-temperature environments. |
| Pressure Vessel Window | Withstands huge pressure differences without rupture and ensures the safe operation of the equipment. | Its good mechanical strength ensures the safe operation of the equipment. |
| Laser Window | Withstands the thermal shock of high-energy laser beams and ensures the normal transmission of the laser. | Its excellent optical performance and exceptional temperature resistance meet the requirements of laser transmission. |
(C) Optical and Military Fields
| Application Scenario | Role | Advantage Manifestation |
|---|---|---|
| Infrared and Military Equipment | Combines infrared transmission and physical protection to enhance the combat effectiveness of military equipment. | Its wide-wavelength optical transmission performance and high hardness meet the requirements of military equipment. |
| Spacecraft Window | Withstands extreme temperatures, radiation, and micrometeoroid impacts in the space environment and ensures the safe operation of the spacecraft window. | Its exceptional performance ensures the safe operation of the spacecraft window. |
(D) Medical and Scientific Instrument Fields
| Application Scenario | Role | Advantage Manifestation |
|---|---|---|
| Medical Sensor and Endoscope Window | Ensures the safe use of medical devices. | Its excellent biological inertness and disinfection resistance meet the requirements of medical devices. |
| Spectrometer and Microscope Window | Ensures stable signal transmission and pure optical transmittance, providing accurate data support for scientific research and medical diagnosis. | Its excellent optical performance ensures stable signal transmission and pure optical transmittance. |
III. Market Prospects and Development Trends of Artificial Sapphire Windows
(A) Broad Market Prospects
With the continuous advancement of technology and the increasing demand for high-performance optical window materials across various industries, the market prospects for artificial sapphire windows are very broad. In the consumer electronics field, as smartphones, smartwatches, and other devices continue to be upgraded, the demand for artificial sapphire windows will also continue to increase. In the industrial and scientific fields, with the development of industrial automation and intelligence, the demand for high-performance optical window materials will also grow. In the optical and military fields, with the continuous development of military technology, the demand for high-performance optical window materials will also increase. In the medical and scientific instrument fields, as medical technology advances and scientific research deepens, the demand for high-performance optical window materials will also continue to rise.
(B) Development Trends
| Development Trend | Detailed Manifestation | Impact |
|---|---|---|
| Cost Reduction | With the continuous improvement of crystal growth techniques and processing processes, the production cost of artificial sapphire windows is expected to gradually decrease. | It will expand the application scope of artificial sapphire windows, allowing them to replace traditional window materials more widely. |
| Performance Improvement | Through continuous research and innovation, the performance of artificial sapphire windows will be continuously improved. For example, optimizing crystal growth processes and surface treatment technologies to improve their optical performance and mechanical strength; developing new coating technologies to enhance their wear resistance and corrosion resistance, etc. | It will further enhance the competitiveness of artificial sapphire windows in the market. |
| Application Expansion | In addition to existing application fields, artificial sapphire windows will find applications in more areas. For example, in the new energy sector, such as solar cells and fuel cells, artificial sapphire windows can be used as transparent covers to improve energy conversion efficiency; in the environmental protection sector, such as waste gas treatment and water quality monitoring, they can be used as windows for optical sensors to improve monitoring accuracy. | It will open up new markets and opportunities for artificial sapphire windows. |
In conclusion, artificial sapphire windows have become the preferred material for high-end applications due to their outstanding performance and wide-ranging application fields. With the continuous advancement of technology and the increasing market demand, the market prospects for artificial sapphire windows are very broad, and the development trends are also very promising. In the future development, artificial sapphire windows will continue to leverage their advantages and provide strong support for the development of various industries.
